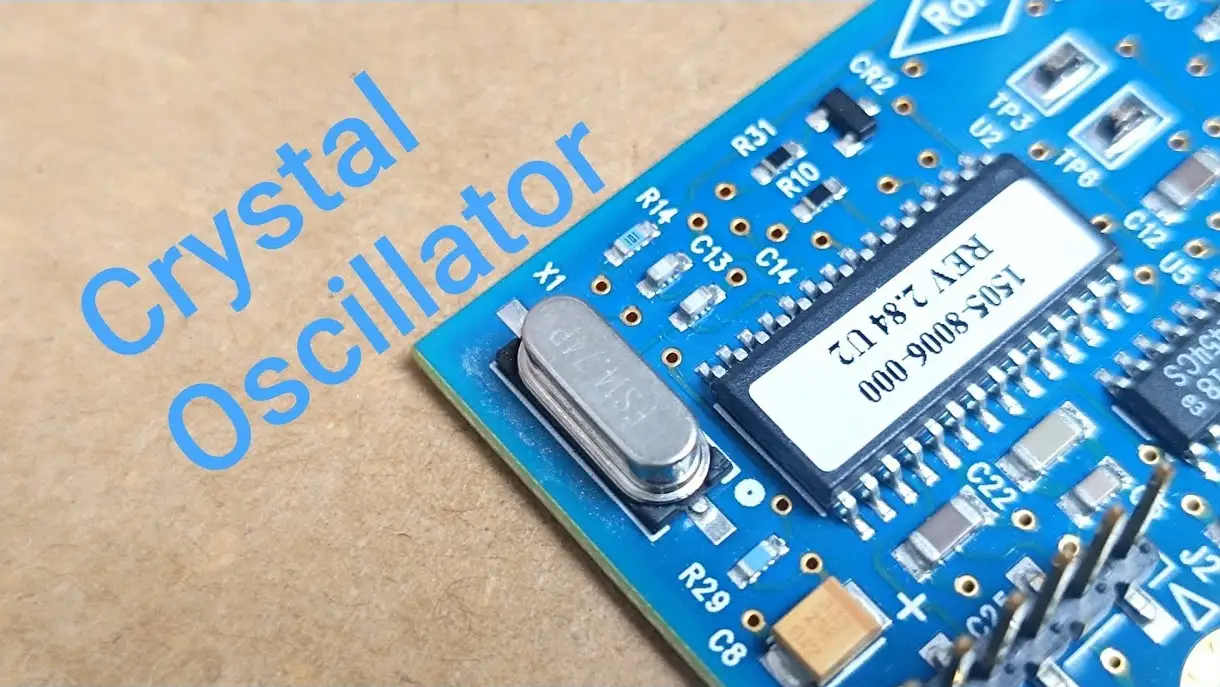

Why should the crystal oscillator not be placed at the edge of the PCB?

The short answer is that placing a crystal oscillator at the edge of the PCB makes it highly susceptible to noise, physical damage, and EMI (Electromagnetic Interference), which can severely degrade the performance and stability of the entire system.

Here’s a detailed breakdown of the reasons why it's a poor practice:

1. Increased Susceptibility to Electromagnetic Interference (EMI)

• The Problem: The edge of the PCB is the most exposed area. It's closer to external noise sources like power cables, radio frequencies (RF), and other noisy boards in a system. A crystal oscillator is essentially a high-frequency, high-impedance component that acts like a very sensitive antenna. Placing it at the edge makes it much more likely to pick up this external noise.

• The Consequence: This noise can couple into the oscillator's signal, causing jitter (timing variations) or frequency instability. Since the clock is the heartbeat of the digital system (e.g., a microcontroller or CPU), this jitter can lead to erratic behavior, data corruption, and communication errors (e.g., in UART, SPI, I2C).

2. Increased Emission of EMI (It Becomes a Noise Source)

• The Problem: The crystal and its associated traces form a resonant circuit that oscillates at a fundamental frequency and can also generate harmonics. This loop itself is a potent source of EMI. Placing this noise source at the edge of the board allows its radiated emissions to escape more easily into free space and to other nearby equipment.

• The Consequence: The board may fail electromagnetic compatibility (EMC) regulatory testing (like FCC or CE). This means the product cannot be legally sold because it interferes with other devices.

3. Mechanical Stress and Risk of Damage

• The Problem: The edges of a PCB are the most vulnerable points during manufacturing, assembly, handling, and everyday use. They are more likely to be bumped, scratched, or stressed if the board is snapped out of a panel (a process called depanelization).

• The Consequence: Crystal oscillators, especially through-hole crystals or ceramic SMD packages, can be mechanically fragile. Stress can cause micro-cracks in the crystal element or its solder joints, leading to a non-functional or unreliable oscillator.

4. Compromised Return Path and Grounding Issues

• The Problem: High-frequency signals require a tight, uninterrupted return path directly underneath the signal trace to minimize loop area and inductance. This is a critical concept for signal integrity. At the edge of the board, the reference ground plane is often cut off or irregular.

• The Consequence: A poor return path increases the loop area of the oscillator circuit, making it both a better antenna (for receiving and emitting noise) and less stable. This can lead to the same timing jitter and instability issues mentioned earlier.

5. Violation of the "Keep-Out Area" Rule

• Most component datasheets and PCB design guides for high-speed or sensitive circuits explicitly specify a "keep-out area" under and around the crystal. This means no other signal traces, especially noisy digital or power lines, should be routed on any layer beneath the crystal.

• Placing the crystal at the edge makes it nearly impossible to enforce this keep-out area on all sides, as one side is simply open space, leaving it unprotected.

Best Practices for Crystal Placement and Routing:

Instead of placing it at the edge, follow these guidelines:

1. Place it Close to the IC: The most important rule. Place the crystal as close as possible to the clock input pins of the driving chip (e.g., the MCU's XTAL1/XTAL2 pins) to minimize the length of the traces.

2. Use a Ground Plane: Provide a solid, continuous ground plane on the layer directly below the crystal and its traces to act as a shield and provide a clean return path.

3. Keep Traces Short and Direct: The traces between the chip and the crystal should be short, direct, and of equal length (if using a load capacitor on each side).

4. Guard Rings: Surround the crystal and its traces with a "guard ring" — a grounded copper pour that acts as a shield from other noisy signals on the board.

5. Keep Away From Noisy Sources: Keep the crystal and its traces far away from sources of noise like switching power supplies, RF circuits, and high-speed digital data lines.

6. Proper Load Capacitors: Place the load capacitors (usually specified in the MCU datasheet) as close as possible to the crystal's pins and route them directly to the ground plane.

In summary: Placing a crystal at the edge of a PCB exposes it to external noise, allows it to radiate noise, risks physical damage, and ruins its carefully controlled signal environment, leading to a unreliable and noisy clock signal. Always treat the crystal circuit as a sensitive, high-frequency analog component that needs to be protected and isolated.
