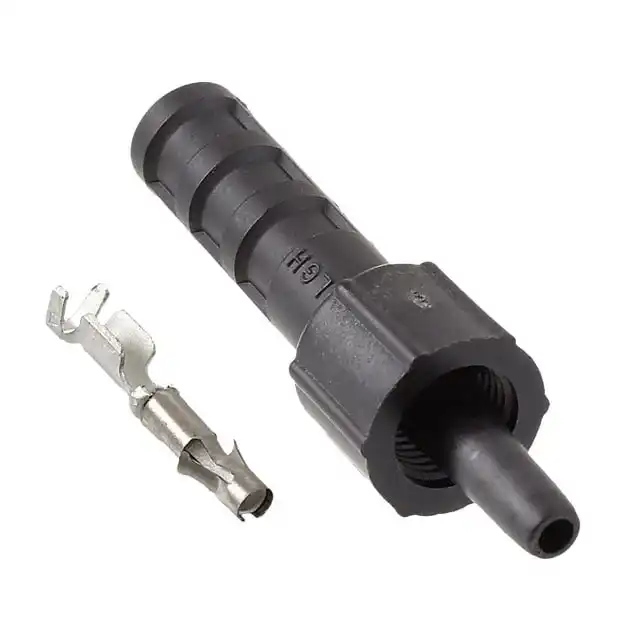

• LGH Connectors

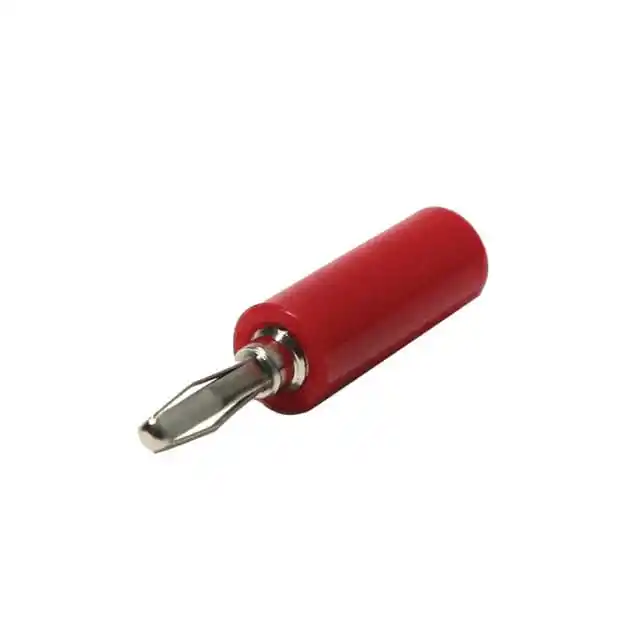

• Banana and Tip Connectors
• Blade Type Power Connectors

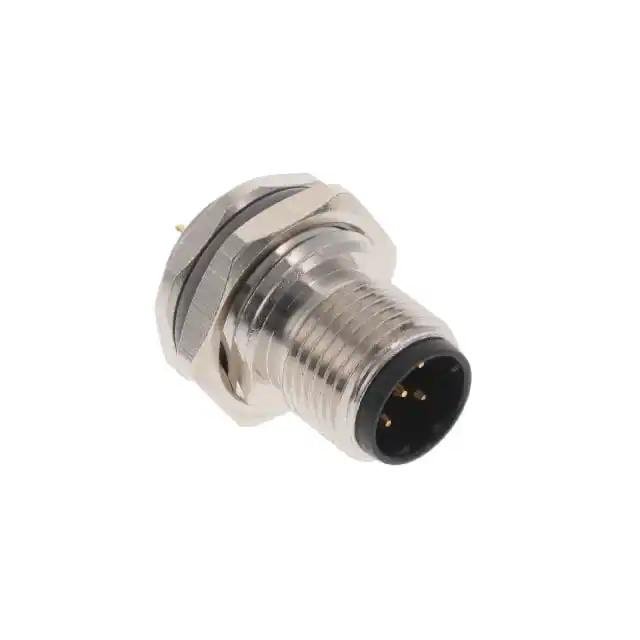

• Circular Connectors

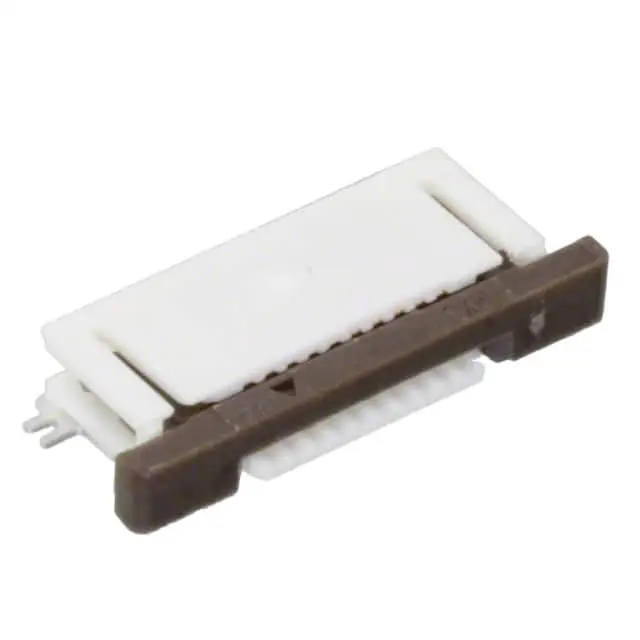

• FFC & FPC Connectors

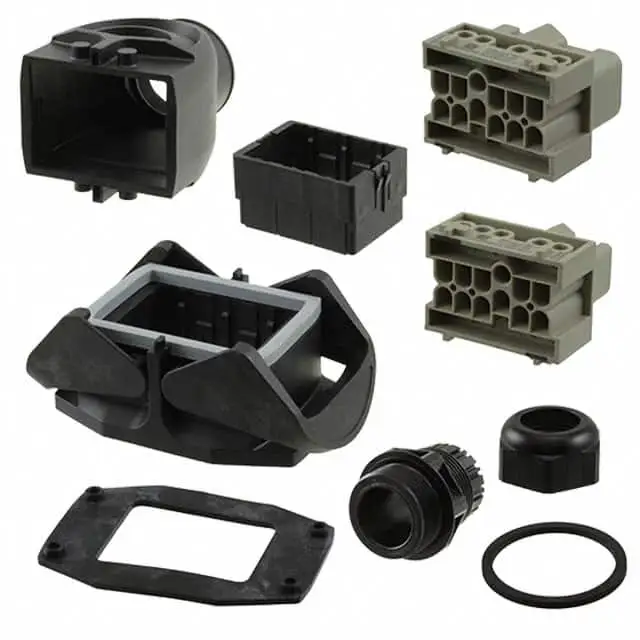

• Heavy Duty Connectors
• Memory Connectors

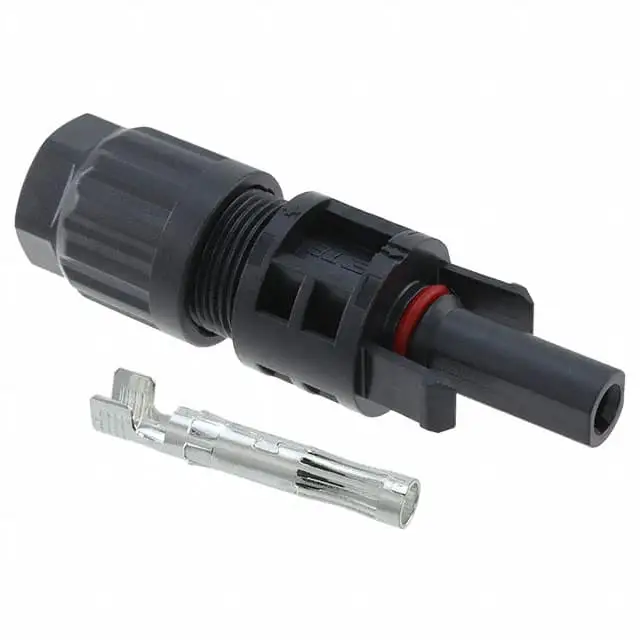

• Photovoltaic Connectors

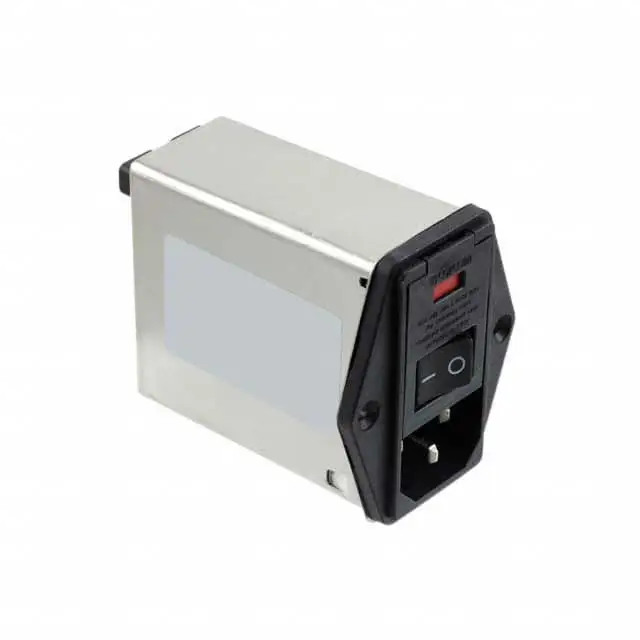

• AC Power Connectors

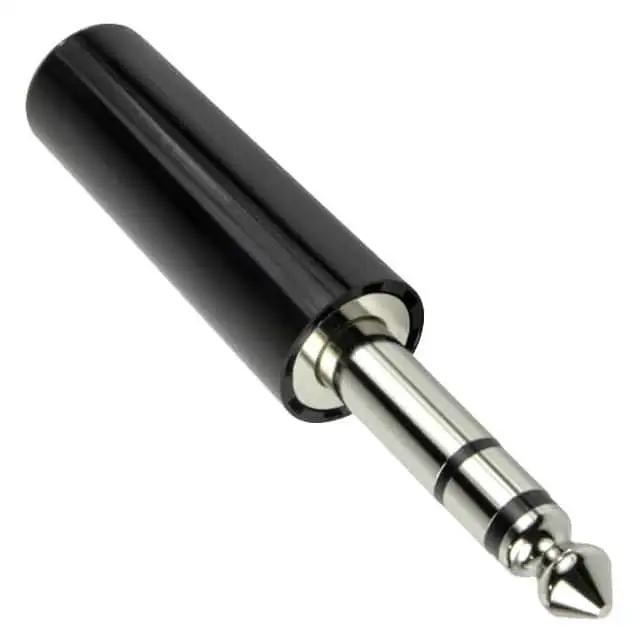

• Barrel Connectors

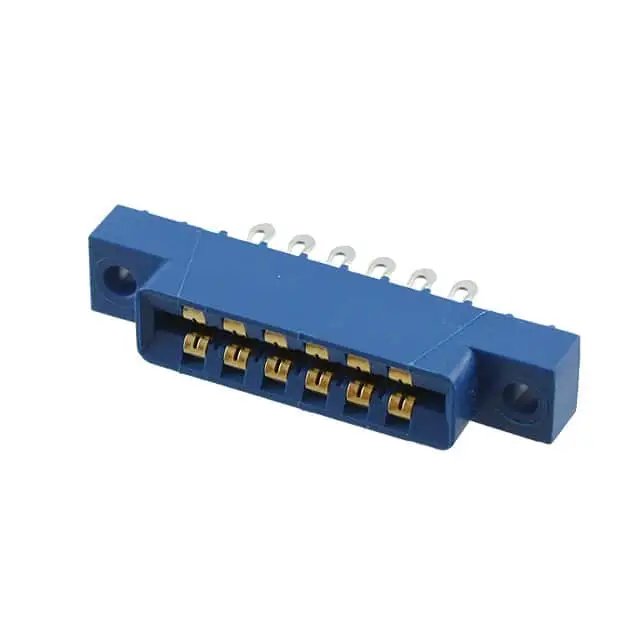

• Card Edge Connectors

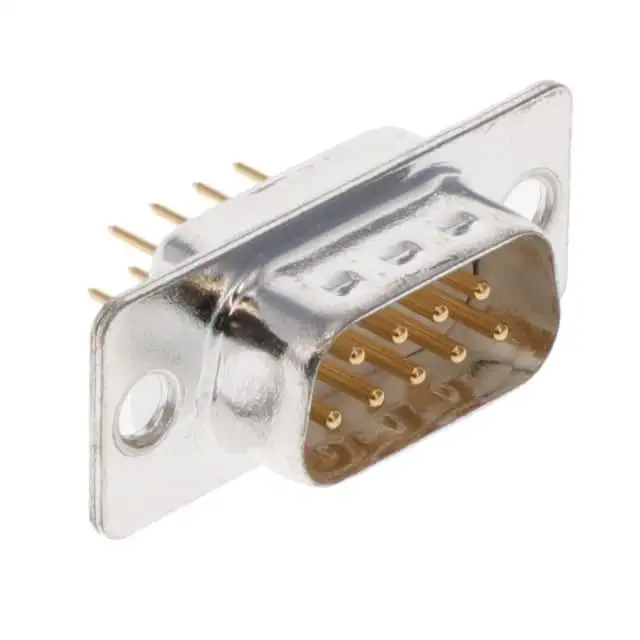

• D-Sub Connectors

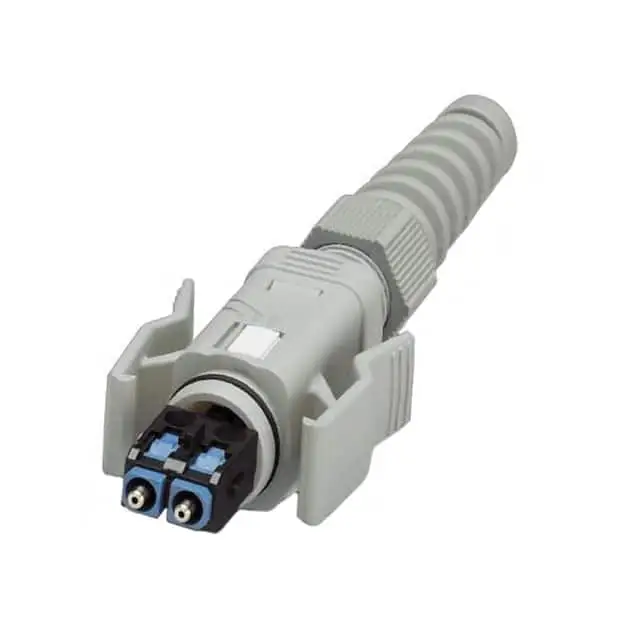

• Fiber Optic Connectors

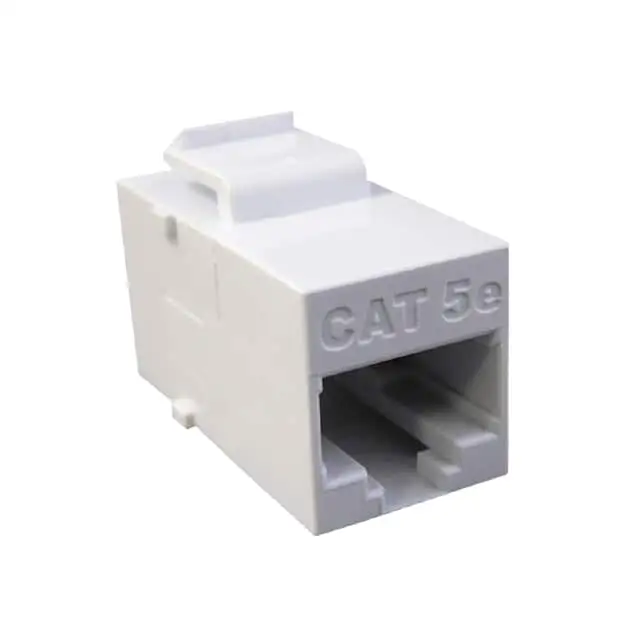

• Keystone Connectors

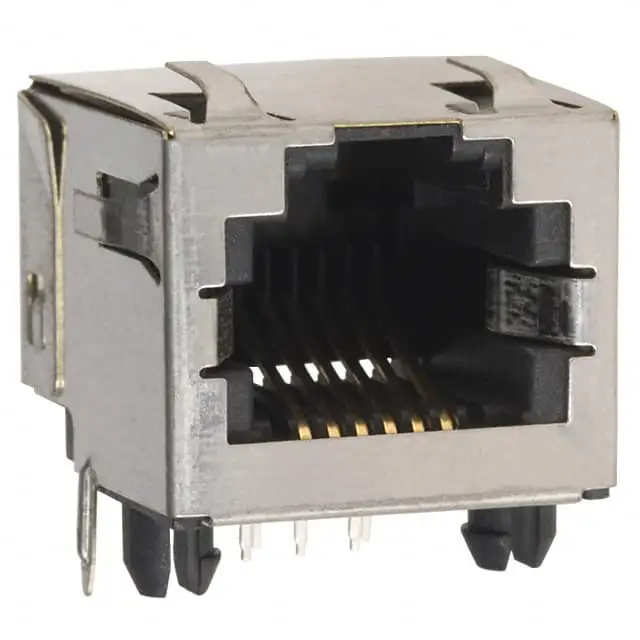

• Modular Connectors

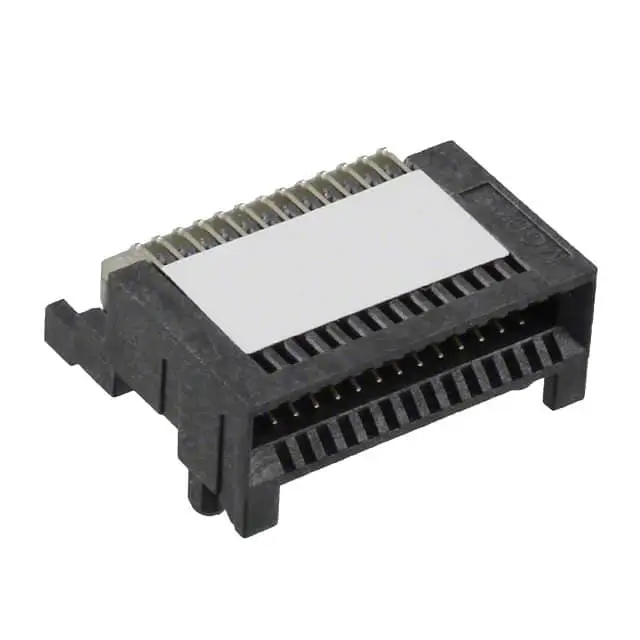

• Pluggable Connectors

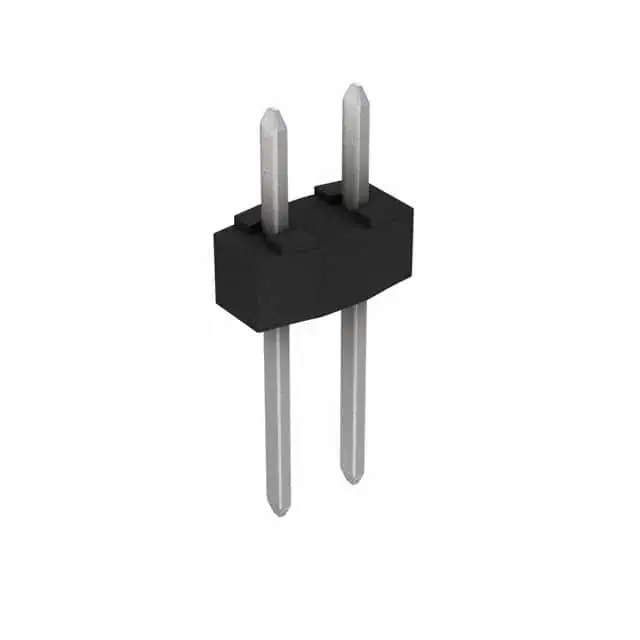

• Rectangular connectors

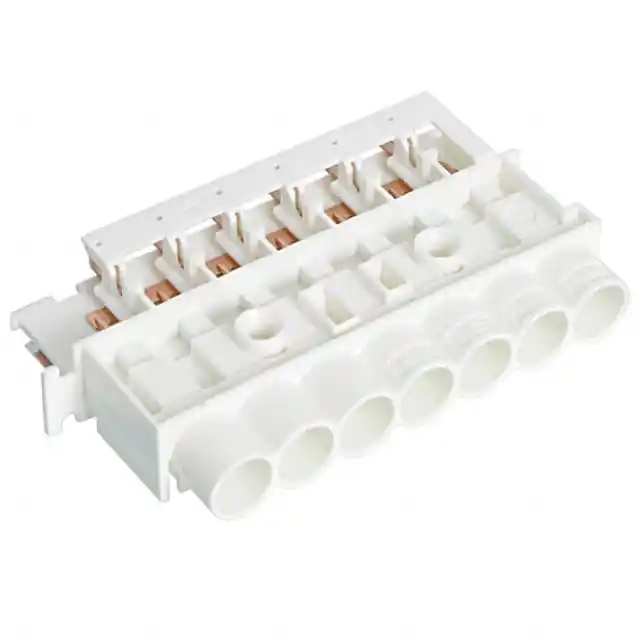

• Lighting Connectors

Explore Our Connectors

LGH Connectors	Banana and Tip Connectors	Blade Type Power Connectors	Circular Connectors
FFC & FPC Connectors	Heavy Duty Connectors	Memory Connectors	Photovoltaic Connectors
AC Power Connectors	Barrel Connectors	Card Edge Connectors	D-Sub Connectors
Fiber Optic Connectors	Keystone Connectors	Modular Connectors	Pluggable Connectors
Rectangular connectors	Lighting Connectors

Content Categories

• Connector Selection Guide

Connector Selection Guide

Choosing the right connector for your application is essential to ensure performance, reliability, and long-term durability. A well-selected connector ensures stable electrical performance, minimizes downtime, and reduces maintenance costs. The following factors should be considered when selecting a connector:

1. Electrical Requirements

Connectors need to be chosen based on the electrical specifications of the system, including:

• Voltage and Current Ratings: The voltage and current the connector will carry should match the system’s needs. Ensure the connector can handle peak load conditions without overheating or degrading. Look for connectors with UL or CE certifications for safety and performance standards.
• Contact Resistance: This refers to the resistance between the mating parts of the connector. Low contact resistance is essential for ensuring minimal power loss, especially in high-speed or high-frequency applications.
• Insulation Resistance: A high insulation resistance is crucial for preventing leakage currents and ensuring safe operation, especially in high-voltage applications.
• Current Carrying Capacity: Choose connectors that are designed for the current requirements of your application. Overloading a connector can result in heating, reduced lifespan, or even catastrophic failure.

2. Mechanical Requirements

The mechanical properties of a connector determine its physical integrity and compatibility with your system. Consider the following:

• Size and Form Factor: Ensure the connector fits in the available space. The size of the connector should match the footprint of your PCB or other hardware. Factors such as the number of pins and pitch (spacing between pins) are critical for matching connectors to your system.
• Durability: Connectors should be able to withstand mechanical stress, vibration, and frequent mating cycles. For applications that require repeated insertions and removals, choose connectors with high mating durability ratings.
• Locking Mechanism: Some connectors include locking mechanisms (e.g., clips, latches, or screws) to ensure a secure connection that does not loosen under vibration or physical stress. This is particularly important in automotive, aerospace, and industrial applications.
• Environmental Protection: If the connector will be exposed to harsh environments, choose connectors with a high Ingress Protection (IP) rating. For outdoor, marine, or heavy industrial applications, IP67 or IP68-rated connectors are typically recommended for their resistance to dust, water, and chemicals.

3. Environmental Factors

Environmental conditions play a significant role in the connector’s performance and lifespan. Below are key factors to consider:

• Temperature Range: Ensure that the connector can operate within the temperature range of your application. Extreme temperatures can cause connector materials to degrade, resulting in failure. Look for connectors rated for high or low-temperature operation, such as those with a -40°C to 125°C range for automotive or industrial applications.
• Moisture and Corrosion Resistance: In humid or marine environments, corrosion can significantly impact connector reliability. Stainless steel or gold-plated connectors are ideal for these conditions, providing excellent corrosion resistance. Furthermore, connectors with seals or gaskets offer additional protection against moisture ingress.
• Vibration and Shock Resistance: In applications subject to heavy vibrations, such as automotive, aerospace, and industrial equipment, choose connectors designed with vibration-resistant features. These include locking mechanisms, rugged housings, and soldering features that ensure a secure connection even under shock and vibration.

4. Connection Type

The type of connection required will also influence the choice of connector. There are two primary connection types:

• Soldered Connections: Soldered connections are permanent and offer a strong, stable connection. These are ideal for applications where the connector will not be regularly disconnected. Ensure the connector has a high-quality plating to prevent soldering issues.
• Crimped Connections: Crimped connectors are more flexible for situations where connectors need to be regularly connected and disconnected. These connectors feature terminals that are crimped onto the wire to create a secure mechanical and electrical connection. Crimping requires precision tools and techniques to ensure the correct connection is made.

5. Compliance and Standards

For connectors used in critical systems, it is essential to ensure that they comply with industry standards. Below are some of the most common certifications:

• UL (Underwriters Laboratories): UL certification ensures the connector meets rigorous safety and performance standards, particularly in electrical systems.
• RoHS (Restriction of Hazardous Substances): RoHS compliance ensures that the connector does not contain harmful substances such as lead, cadmium, and mercury, which are harmful to both the environment and human health.
• IP Rating: The Ingress Protection rating (IP rating) specifies the connector's resistance to dust and water. An IP67 rating means the connector is dust-tight and can withstand immersion in water up to 1 meter for up to 30 minutes.
• ISO 9001: ISO 9001 certification indicates that the manufacturer follows a quality management system to ensure consistent production of high-quality connectors.

6. Cost vs. Performance

While it may be tempting to choose the cheapest connector available, always consider the trade-off between cost and performance. High-performance connectors typically come with a higher price tag due to their superior materials, manufacturing processes, and certifications. However, investing in a higher-quality connector may save you from costly failures, downtime, and maintenance issues in the long term. Some additional considerations include:

• Lifecycle Costs: Consider not only the initial cost but also the expected lifecycle costs. A lower-cost connector may wear out quicker, increasing maintenance and replacement costs over time.
• Brand Reputation: Reputable connector manufacturers typically provide more reliable products with better customer support, which can help reduce troubleshooting and replacement costs in the future.

7. Future-Proofing

As technologies evolve, it is important to select connectors that can accommodate future upgrades or expansions. When selecting connectors, consider potential future needs such as:

• Scalability: If your application may expand in the future, ensure that the connector you choose can accommodate more pins or higher current and voltage ratings.
• Technological Advancements: As new technologies emerge, connectors may need to support higher data transfer speeds, higher power ratings, or integration with new communication protocols. Consider choosing connectors with higher performance ratings to future-proof your design.

Choosing the right connector is a critical decision that impacts the performance, longevity, and reliability of your systems. By carefully evaluating electrical requirements, mechanical specifications, environmental factors, and future needs, you can make an informed choice that ensures a successful and reliable connection in your application.
