š Introduction
Resistors are generally reliable components, but they are not immune to failure. Understanding the common resistor failure modes and how to detect them is essential for maintaining circuit integrity, especially in industrial or high-power applications.
š„ Common Resistor Failure Modes
- Open Circuit: The resistor no longer conducts current. Often caused by thermal stress or cracks.
- Short Circuit: Internal breakdown causes resistance to drop significantly, bypassing its intended function.
- Drift in Resistance: Gradual change in resistance value due to age or environmental conditions.

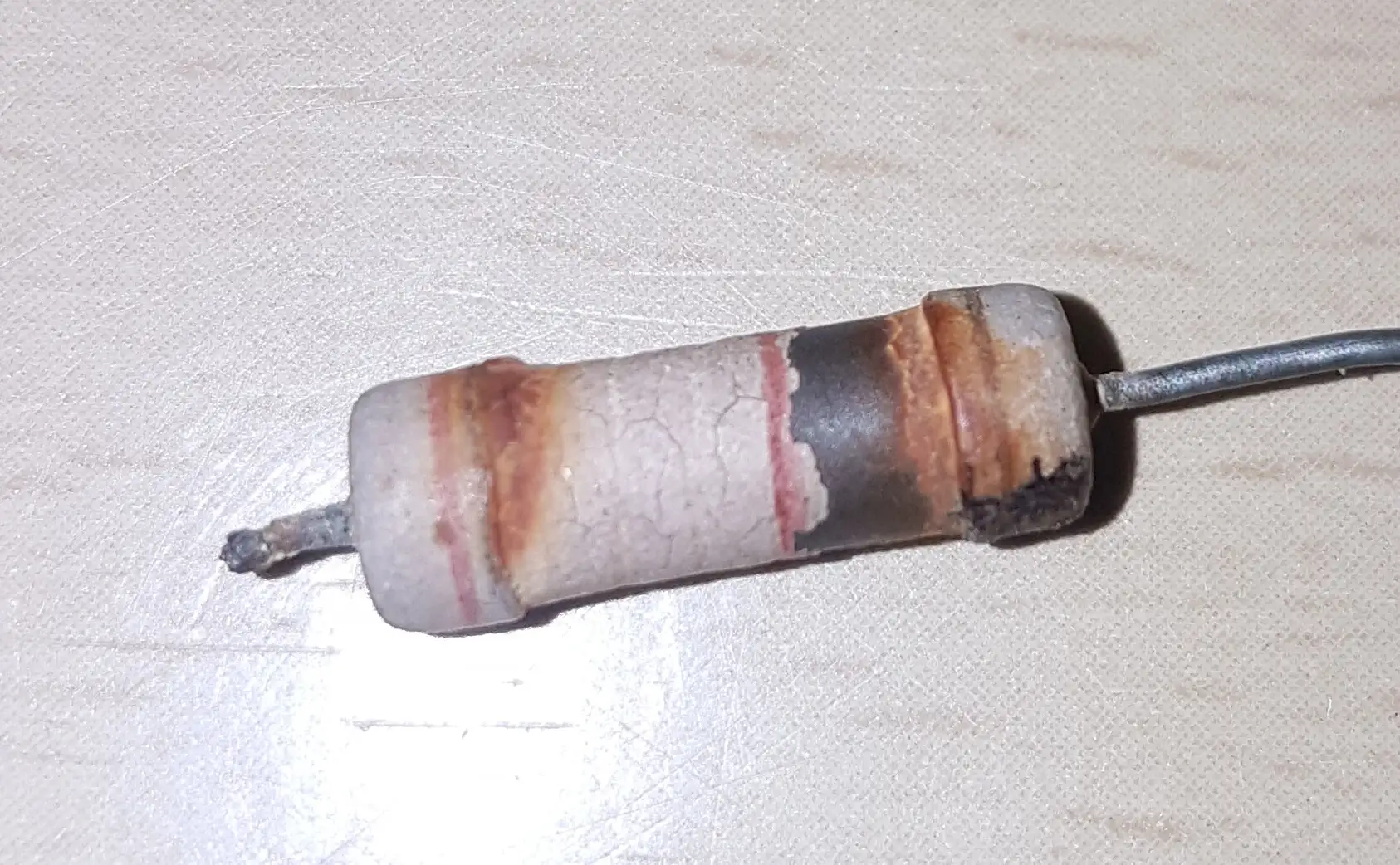

- Thermal Degradation: Burn marks, discoloration, or cracking due to overheating or overcurrent.
- Physical Damage: Cracked body, broken leads, or deformed surface due to mechanical stress or vibration.
ā ļø Common Causes of Resistor Failure
- Excessive Power Dissipation: Going over the wattage rating causes heat damage.
- Voltage Surges or Spikes: High transient voltages can puncture insulation or damage the resistive element.
- Mechanical Stress: Bending or vibration can crack the ceramic body or solder joints.
- Environmental Conditions: Humidity, corrosion, or thermal cycling can affect resistor integrity.
š How to Detect Resistor Failure
Use the following methods to identify bad or failing resistors:
- Visual Inspection: Look for discoloration, burn marks, cracks, or broken leads.
- Multimeter Testing: Measure resistance out of circuit. Compare with labeled or expected value.
- Thermal Camera: Overheating resistors can be spotted with infrared thermography tools.
- Circuit Behavior: Unusual voltage drops, incorrect current flow, or system errors may indicate a failing resistor.
š ļø Tools for Testing Resistors
- Digital Multimeter (DMM)
- Oscilloscope (for dynamic signal issues)
- Thermal imaging camera (for heat signatures)
- LCR meter (for accurate resistance values)
ā How to Prevent Resistor Failure
- Always select resistors with a power rating at least 2× expected dissipation
- Use surge protection for sensitive circuits
- Apply conformal coating in high-humidity environments
- Use wirewound or high-wattage resistors in industrial/high-load applications
ā FAQ
Q: Can a resistor look normal and still be faulty?
Yes. Resistors can drift from tolerance without any visible damage. Always test with a multimeter.
Q: What happens when a resistor fails short?
The circuit may overdraw current, damaging downstream components or causing thermal runaway.
Q: Are metal film resistors more reliable?
Yes. Metal film and wirewound resistors generally have better tolerance and thermal stability than carbon types.
