Different Types of Potentiometer Explained

💡Ⅰ. Introduction to Potentiometers

What is a Potentiometer?

A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. Commonly referred to as a variable resistor, it enables the control of electrical signals in a circuit. Potentiometers are widely used in both analog and digital electronics to adjust levels such as volume, brightness, and signal strength.

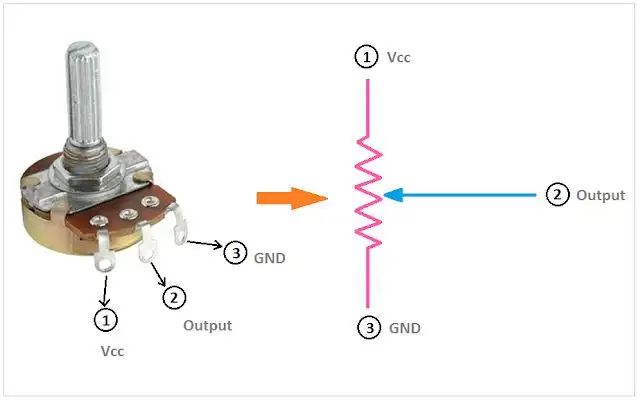

How a Potentiometer Works

The construction of a potentiometer typically includes a resistive track and a wiper. As the user turns the knob or moves the slider, the wiper travels along the resistive path, changing the resistance between terminals. This variation in resistance modifies the output voltage or current in the circuit.

Potentiometers work on the principle of a voltage divider. The input voltage is applied across the two ends of the resistive element, and the output voltage is taken from the wiper terminal. This makes them ideal for signal tuning in analog circuits.

Common Applications of Potentiometers

• Audio Volume Control: Rotary potentiometers are used in audio equipment to adjust volume levels.
• Lighting Dimmers: Linear potentiometers help regulate light intensity.
• Sensor Calibration: Fine-tuning sensor sensitivity in measurement devices.
• Joystick Controls: Used in gaming and industrial joysticks for direction and speed control.
• Instrumentation Panels: For manual control of devices like oscilloscopes, test equipment, etc.

🎬 Watch: Potentiometer Explained

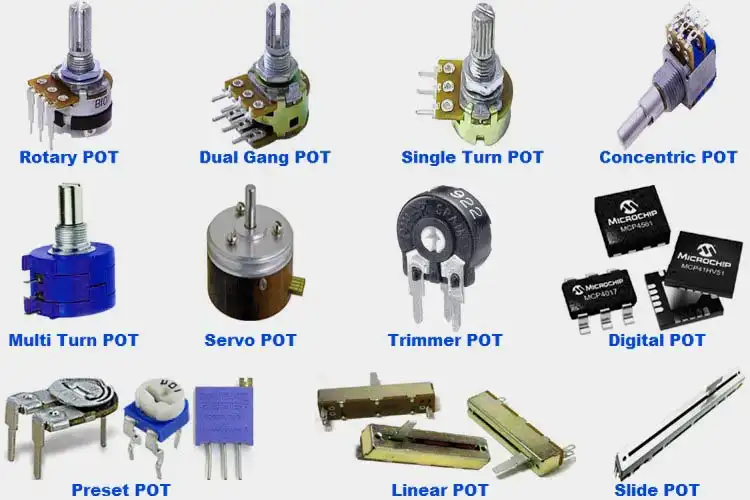

💡Ⅱ. Classification of Potentiometers

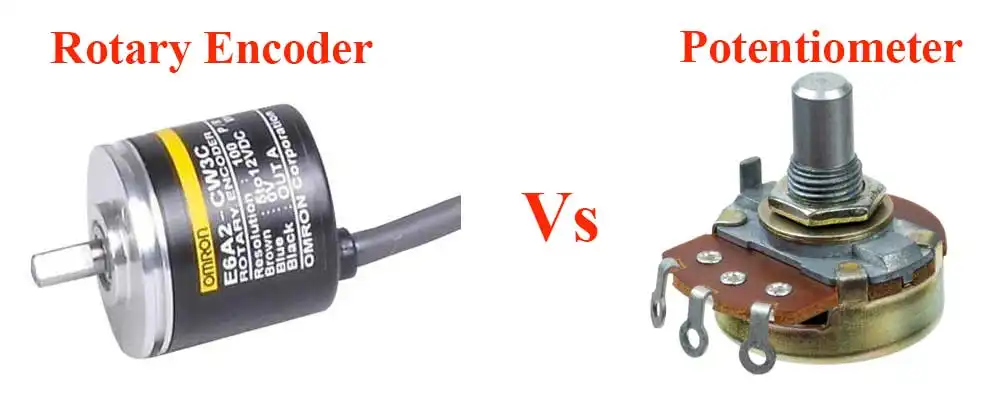

1. Rotary vs Linear Potentiometers

Potentiometers are broadly categorized based on their adjustment method:

• Rotary Potentiometers: These are the most common type. They feature a rotating knob that moves the wiper around a circular resistive path. Commonly used in audio systems, mixers, and control panels.
• Linear Potentiometers: Also known as slide potentiometers, these use a slider that moves in a straight line. They are frequently used in graphic equalizers, lighting controls, and fader consoles.

2. Structural Types of Potentiometers

Different materials and construction techniques are used to create potentiometers suited for various applications. These include:

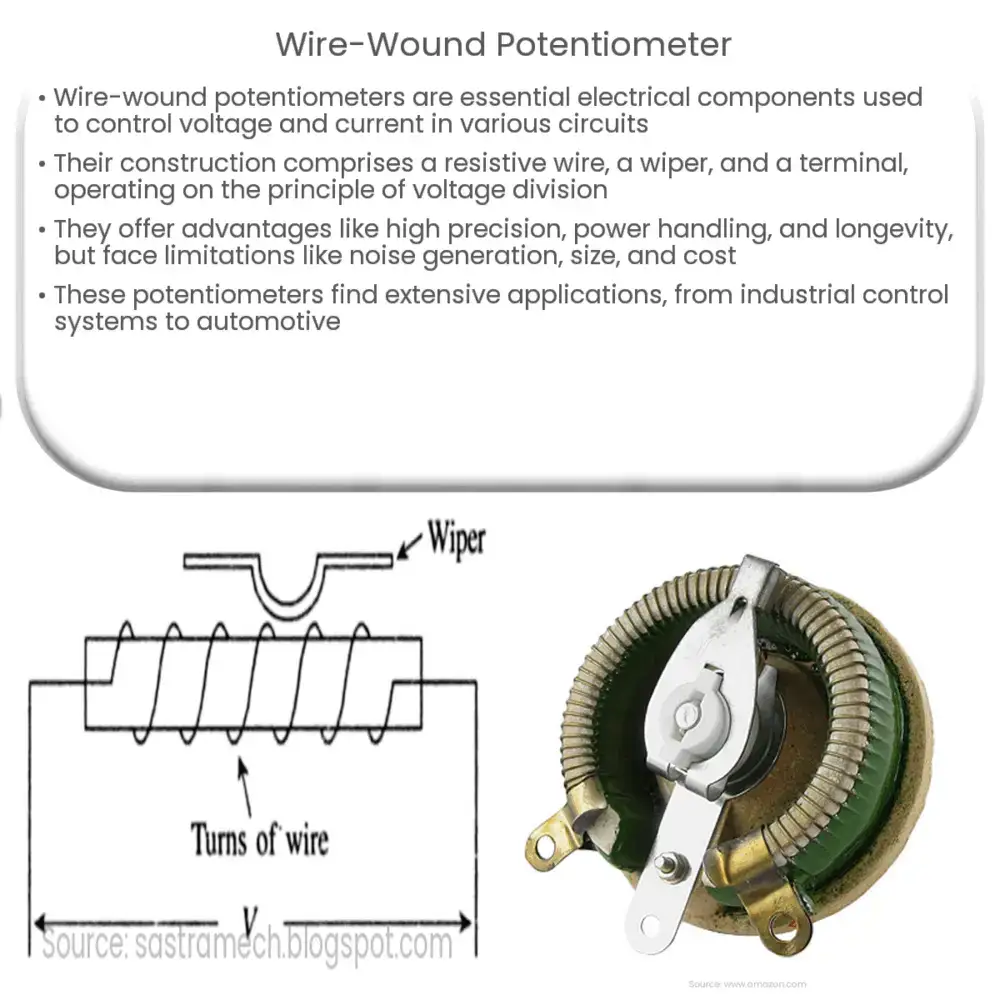

• Wire-wound Potentiometers: Made using a coil of resistive wire. These are highly durable and precise but not ideal for smooth analog control due to stepwise resistance.
• Carbon Film Potentiometers: Economical and commonly used in consumer electronics. They offer smooth operation but lower lifespan and precision.
• Cermet Potentiometers: Made from a ceramic-metal composite, they offer better stability and lifespan than carbon types, making them suitable for industrial applications.
• Plastic Conductive Potentiometers: Known for smooth, quiet operation and long life, ideal for audio and professional equipment.

3. Functional Classification: Preset vs Adjustable

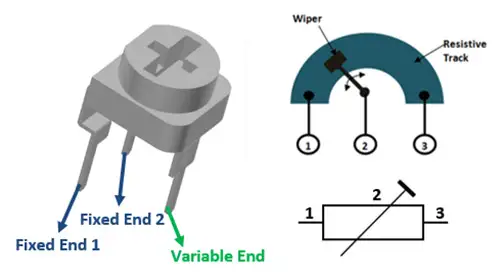

• Preset Potentiometers (Trimmers): These are compact potentiometers that are adjusted during manufacturing or maintenance. They are not designed for frequent adjustment.
• Adjustable Potentiometers: Designed for frequent use by end users, these include both rotary and linear types commonly seen in consumer electronics.

🔍 Expert Tip: Choosing the Right Potentiometer

For audio applications, plastic or carbon rotary potentiometers are often preferred for their smooth feel and low noise. For industrial use, wire-wound or cermet potentiometers are ideal due to their durability and precision.

🎬 Watch: Rotary vs Linear Potentiometer Explained

💡Ⅲ. Rotary Potentiometer

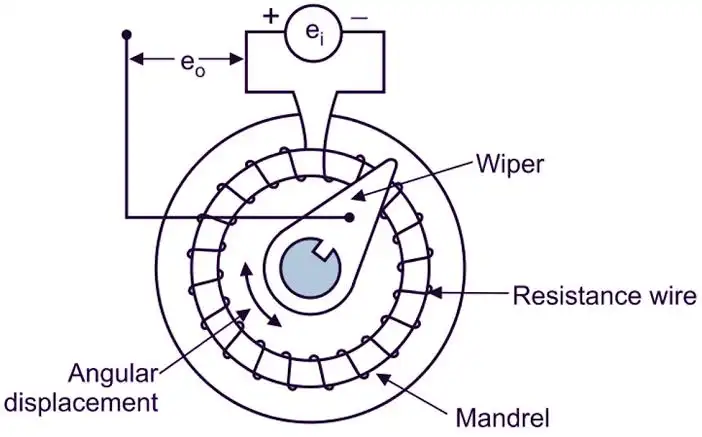

1. What is a Rotary Potentiometer?

A rotary potentiometer is a type of variable resistor with a rotating shaft or knob that adjusts the resistance in a circuit. It typically consists of a circular resistive track and a movable contact called a wiper, which rotates to vary the output voltage.

Rotary potentiometers are widely used in user interfaces to control volume, brightness, or other analog parameters. They are commonly found in audio systems, control panels, and automotive dashboards.

2. Key Electrical Parameters Explained

• Resistance (Ohm Rating): The total resistance value between the two fixed terminals. Common values include 10k ohm rotary potentiometer, 5kΩ, 100kΩ, etc.

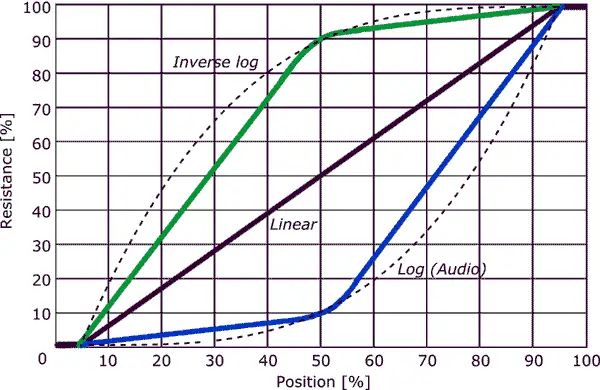

• Taper: Defines how resistance changes with rotation. Linear taper increases resistance evenly; logarithmic taper (audio taper) changes resistance exponentially, suitable for audio control potentiometers.
• Tolerance: Indicates the accuracy of resistance value, typically ±10% or ±20% for general-purpose rotary pots.

3. Applications of Rotary Potentiometers

Rotary potentiometers are versatile components, widely used in:

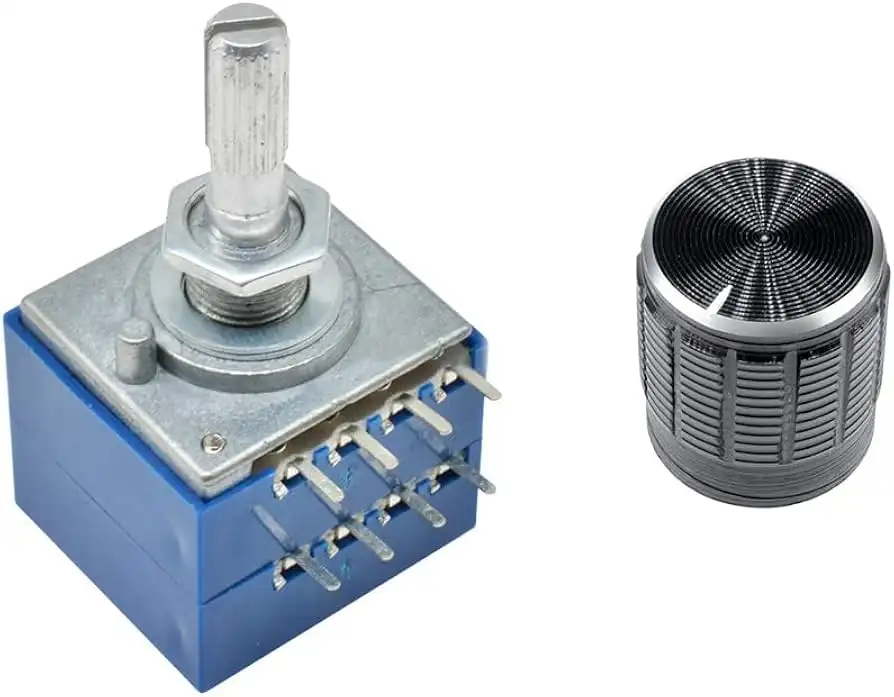

• Audio Systems: As audio control potentiometers to adjust volume or tone.
• Automotive Dashboards: For light dimmers, temperature, and airflow controls.
• Measuring Instruments: To calibrate signal levels or sensitivity.
• Control Panels: In industrial and consumer electronics for analog input.

🎬 Watch: How a Rotary Potentiometer Works

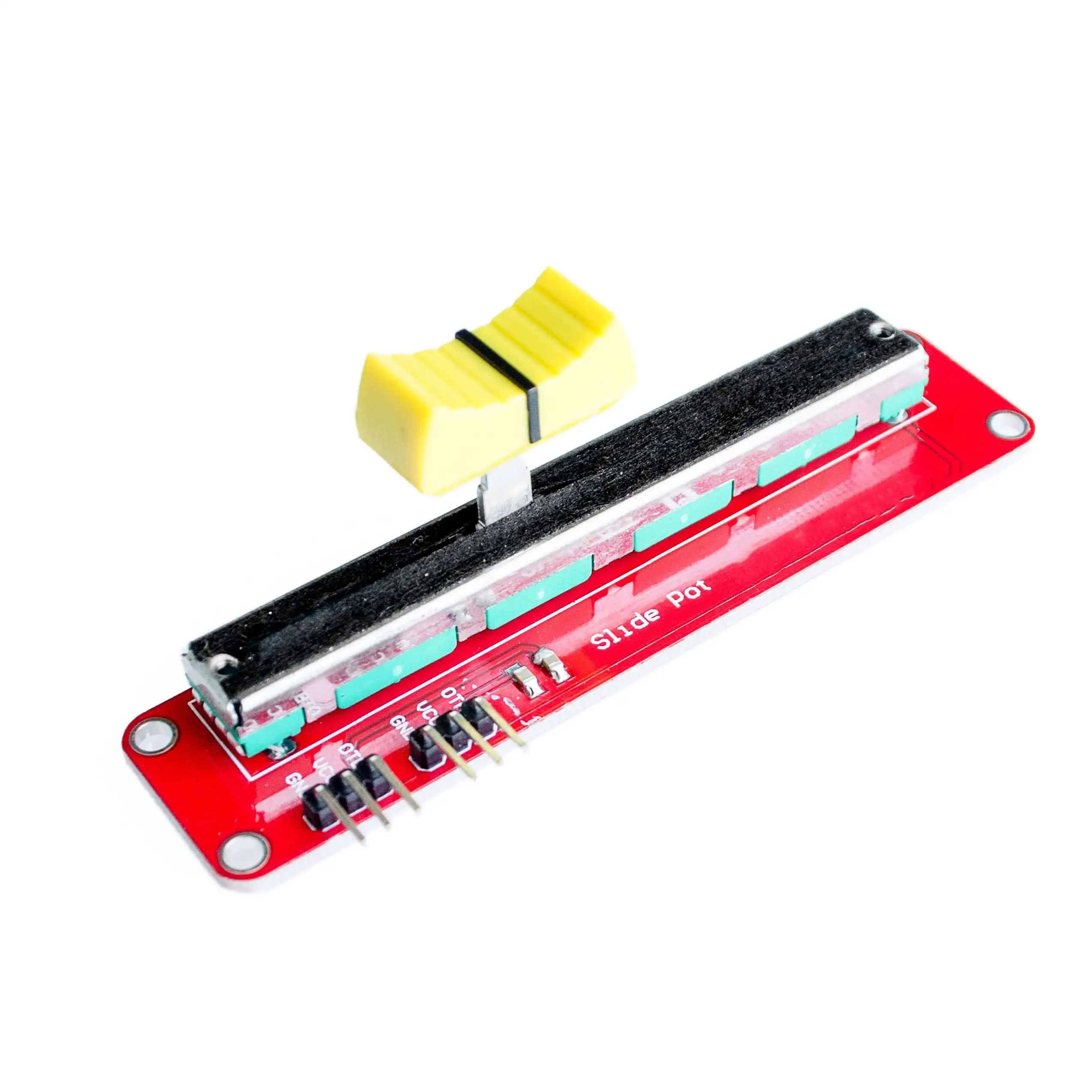

💡Ⅳ. Linear Potentiometer

1. How a Linear Potentiometer Works & Its Advantages

A linear potentiometer, also known as a slide potentiometer or linear position sensor potentiometer, is a type of variable resistor that operates through linear motion rather than rotation. The user moves a slider along a straight path to change the resistance, thus varying the output voltage.

It consists of a resistive track and a sliding wiper. When the slider moves along the track, it adjusts the resistance in proportion to its position, producing a linear voltage output.

• Advantages:
• High precision in position control
• Easy visual feedback of position
• Simplified mechanical integration for linear motion systems

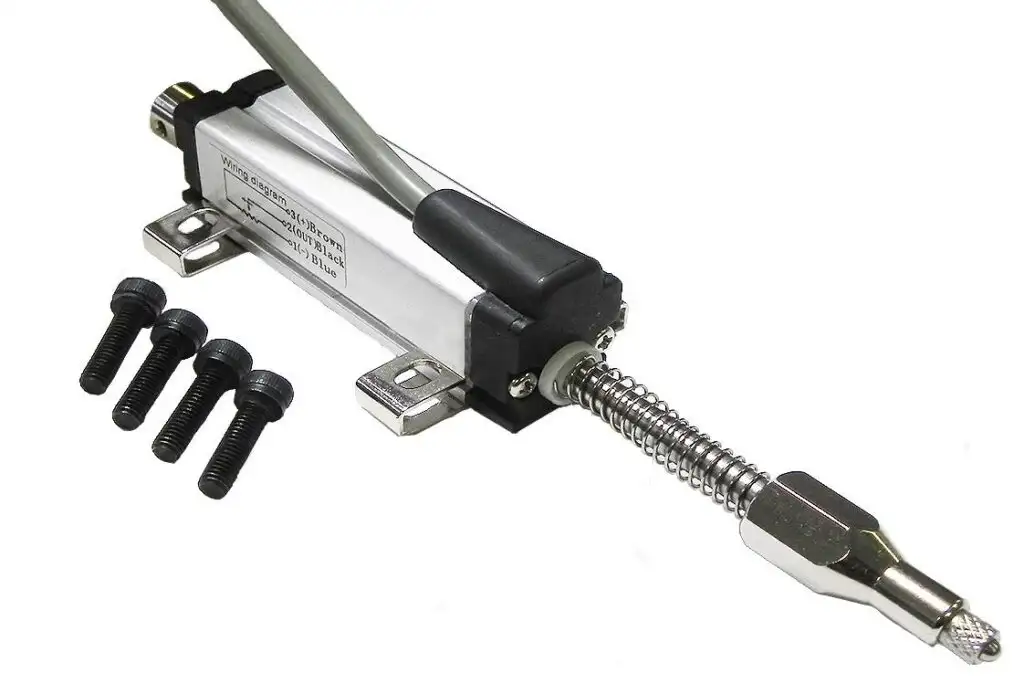

2. Applications of Linear Potentiometers

Analog linear potentiometers are widely used in industrial and precision systems where accurate position sensing is required. Common applications include:

• Industrial automation: For linear displacement measurement in CNC machines and robotics.
• Control consoles: In professional audio mixers and lighting boards for precise adjustments.
• Testing equipment: As linear input devices in laboratory instruments.
• Medical devices: In hospital equipment for adjusting movement range or control parameters.

3. Linear vs Rotary Potentiometer

🎬 Watch: How a Slide Potentiometer Works

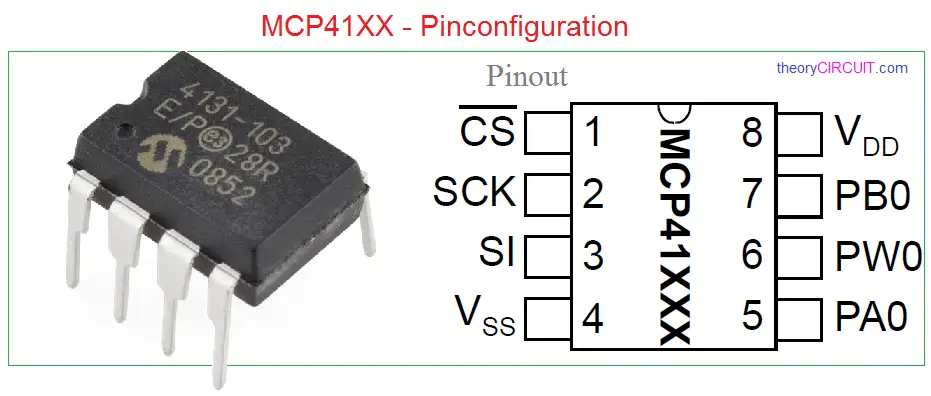

💡Ⅴ. Digital Potentiometers (Digipot)

1. Introduction to Digital Potentiometers

A digital potentiometer, or digipot, is an electronic component that mimics the behavior of an analog potentiometer, but its resistance is controlled by digital signals rather than manual adjustment. Digipots are commonly found in embedded systems where precise and programmable resistance control is needed without human interaction.

They consist of a resistor network with a series of switches that are controlled by digital logic, allowing the device to set specific resistance values through commands.

2. Communication Protocols: SPI and I2C

Most digital potentiometers communicate with microcontrollers using either the SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) protocols. These protocols allow the digipot to receive commands to change the wiper position, effectively setting the desired resistance.

• SPI Digital Potentiometers: Faster data rates, ideal for high-speed applications.
• I2C Digital Potentiometers: Use fewer pins, suitable for simpler or space-constrained projects.

For example, a digital potentiometer with I2C Arduino setup allows users to control resistance directly from an Arduino sketch using libraries like Wire.h.

3. Applications of Digital Potentiometers

Digital potentiometers are widely used in:

• Automatic volume control systems
• Programmable gain amplifiers (PGA)
• Power management and voltage regulation
• Temperature and light compensation systems
• Embedded systems requiring calibration

They are especially favored in designs where remote or software-based resistance control is essential.

Relevant long-tail keyword: digipot IC applications

4. Digital vs Analog Potentiometer

In summary, digital potentiometers are essential components in modern electronics where software-driven resistance control is required. While they are more expensive than analog potentiometers, their programmability, precision, and ability to interface with microcontrollers like Arduino and Raspberry Pi make them invaluable in smart and automated systems.

💡Ⅵ. Specialty Potentiometers

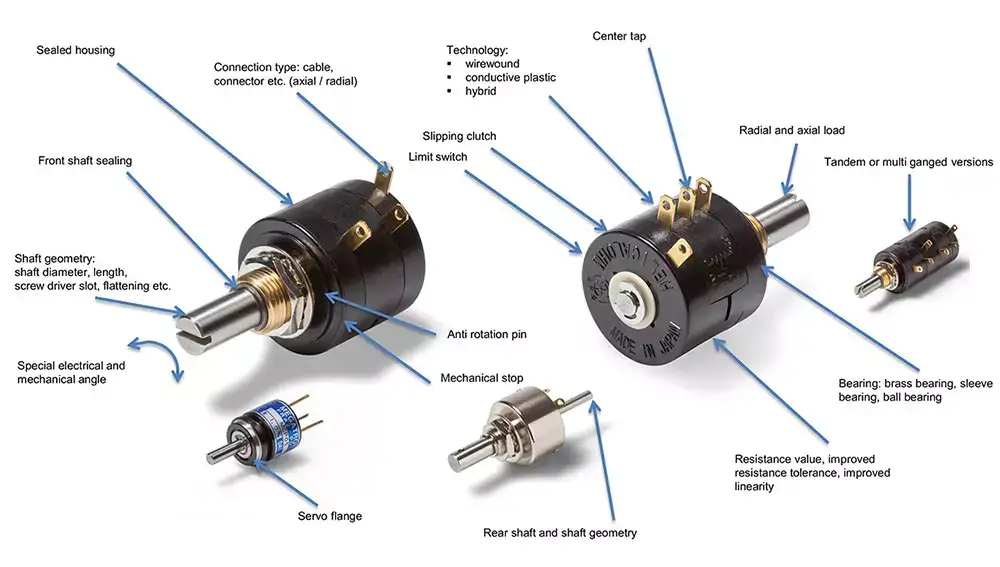

1. Multi-Turn Potentiometers

Multi-turn potentiometers allow the user to adjust resistance over several full rotations (commonly 5, 10, or even 20 turns), offering extremely fine resolution and precision. These are ideal for applications requiring very accurate and stable voltage or current settings, such as calibration devices, medical equipment, and industrial instruments.

Features:

• High resolution control over resistance
• Typically wire-wound for stability
• Panel-mount and PCB-mount versions available

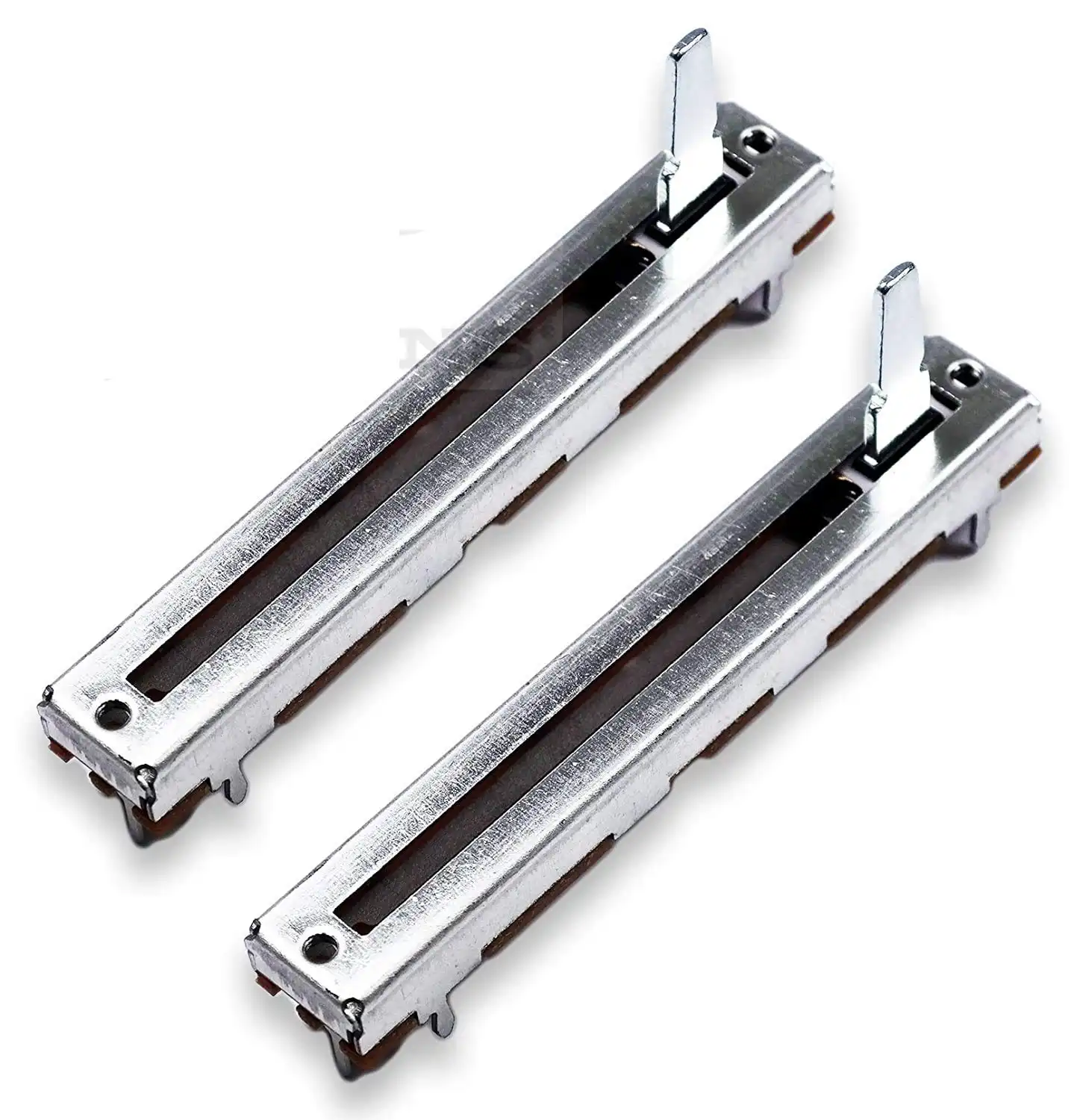

2. Slide Potentiometers

Slide potentiometers, also known as slider pots or faders, operate by moving a knob or finger-tab linearly along a straight path. They are commonly used in audio mixers, lighting equipment, and graphic equalizers where intuitive and visible control is required.

These potentiometers provide visual feedback of the wiper position, which is ideal for real-time adjustments.

3. Potentiometers with Built-in Switches

Potentiometers with switches combine variable resistance adjustment with an on/off switch, often activated by rotating the knob beyond a certain threshold. These are frequently used in audio equipment, lighting controls, and power systems.

They simplify circuit design by integrating two functions into a single component.

Benefits:

• Dual-functionality: resistance control + switching
• Ideal for devices that need startup/shutdown with adjustment

Relevant long-tail keyword: potentiometer with built-in switch

4. Rugged, High-Precision and Waterproof Potentiometers

For challenging environments, waterproof potentiometers and military-grade potentiometers are designed to operate under extreme conditions including humidity, vibration, and temperature swings. They are sealed for dust and moisture ingress and often meet IP67 or MIL-STD specifications.

High precision potentiometers offer tighter tolerances (as low as ±0.5%) and low temperature coefficients, making them perfect for precision analog signal adjustment.

Specialty potentiometers serve niche but critical roles in modern electronics. Whether you need multiple turns for high-resolution adjustment, linear sliders for user interaction, built-in switches for power control, or rugged units for harsh environments — there’s a potentiometer for every professional need.

💡Ⅶ. Potentiometer Applications & Use Cases

1. Audio Devices: Volume and Tone Control

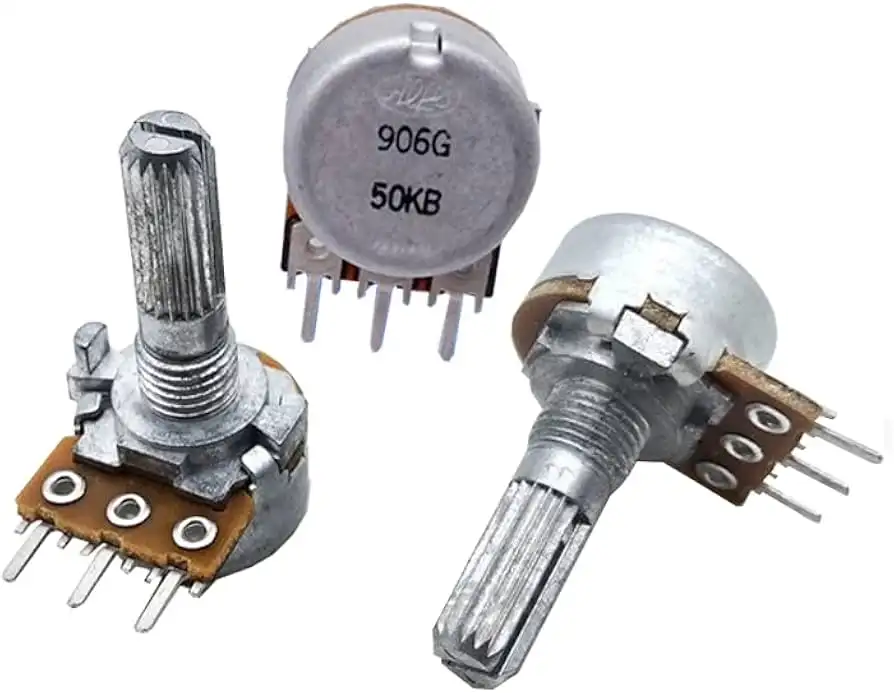

Potentiometers are widely used in audio systems for controlling volume, tone, and balance. Rotary types are common for volume knobs in audio amplifiers, where smooth resistance change translates to perceived loudness adjustment. The taper (linear or logarithmic) is crucial for audio fidelity and user experience.

2. Industrial Automation: Position and Displacement Detection

In industrial automation, potentiometers serve as analog position sensors. Linear potentiometers can measure travel distance or angular displacement in robotic arms, conveyor systems, and CNC machines. Their low-cost, analog output makes them a good fit for closed-loop control systems and programmable logic controllers (PLCs).

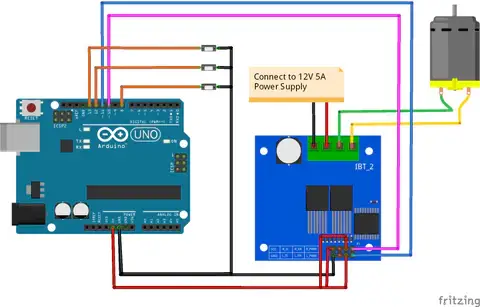

3. Automotive and Medical Instrumentation

In automotive electronics, potentiometers are commonly used for throttle position sensors (TPS), seat adjustment modules, and HVAC controls. These applications often require ruggedized and long-lifespan variants that can withstand vibrations and temperature shifts.

In medical devices, such as infusion pumps, ventilators, and ECG systems, potentiometers are employed for precise control and calibration. Their analog nature supports compatibility with older analog systems while remaining intuitive for user interfaces.

📋 Typical Use Cases Summary

• 🎧 Audio volume control – rotary or slide potentiometers
• 🏭 Industrial automation – linear position feedback
• 🚗 Automotive sensors – throttle, seat, and HVAC systems
• 🏥 Medical devices – analog setting interfaces
• 📟 Embedded systems – variable resistance analog input

These real-world applications demonstrate why potentiometers remain a core component in both analog and digitally integrated electronic systems.

💡Ⅷ. How to Choose the Right Potentiometer

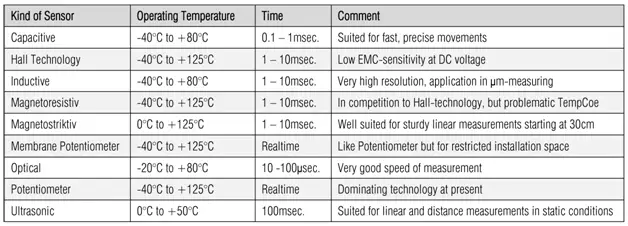

1. Key Parameters to Consider

Selecting the ideal potentiometer depends on several critical factors. Understanding each parameter ensures compatibility with your system and performance expectations:

• Resistance Value (Ω): Common values include 1kΩ, 10kΩ, 100kΩ. Select based on input impedance and circuit voltage drop tolerance.
• Power Rating (W): Choose based on how much power the resistor must dissipate. Most potentiometers range from 0.1W to 2W.
• Tolerance (%): Indicates resistance deviation. ±10% is standard, while high-precision applications need ±1% or better.
• Taper Type: Linear (B taper) or Logarithmic (A taper), depending on application (e.g., audio uses log).
• Mounting & Packaging: Through-hole, surface mount (SMD), panel mount, or multi-turn screw types.

Pro Tip: For audio, choose a logarithmic taper (A) type. For sensor feedback, a linear taper (B) is preferred.

2. Common Selection Mistakes & Expert Advice

Many engineers and hobbyists fall into these pitfalls when choosing a potentiometer:

• ❌ Using a potentiometer with an insufficient power rating — leads to overheating.
• ❌ Selecting a logarithmic taper for linear sensor applications — results in nonlinear feedback.
• ❌ Ignoring mechanical lifespan in high-turn applications — leads to early wear.
• ✅ Tip: Always check the rotation life rating (e.g., 10,000 cycles or more) for frequent adjustments.

3. Recommended Brands and Distributors

Several trusted brands offer high-quality potentiometers for diverse applications:

By carefully matching potentiometer specifications with your circuit needs and relying on trusted brands like Vishay, Bourns, and Alpha, you ensure performance, durability, and system reliability.

💡Ⅸ. Potentiometer Product Comparison Table

To help engineers, designers, and procurement teams select the best potentiometer for their application, here’s a detailed comparison across different types based on construction, resistance range, accuracy, and use cases.

Additional Technical Parameters

Use this comprehensive comparison as a quick reference to select the optimal potentiometer type for your project, whether you're developing analog control systems, embedded circuits, or precision sensor solutions.

💡Ⅹ. Summary & FAQ

🔎 Potentiometer Selection Summary

Choosing the right potentiometer depends on several key factors:

• Application: Determine whether you need rotary control (e.g., volume knob) or linear detection (e.g., position sensing).
• Resistance Value: Choose a value appropriate for your circuit — common values include 1kΩ, 10kΩ, and 100kΩ.
• Tolerance: For precise control, select low-tolerance models like cermet or wire-wound potentiometers.
• Mounting & Size: Consider form factor — through-hole for prototyping, SMD for compact PCBs, or panel-mount for front-facing controls.
• Power Rating: Match power dissipation requirements, especially in analog circuits.

Whether you're designing an audio amplifier, a robotic arm sensor, or an IoT interface, potentiometers remain a crucial analog component.

❓ Frequently Asked Questions

1. How do I solder a potentiometer onto a PCB?

First, ensure the potentiometer pins are clean. Insert the pins into the PCB holes, flip the board, and solder each pin with minimal solder to ensure good connection. Avoid overheating to prevent damage to plastic components.

2. How do I read the resistance value of a potentiometer?

Use a digital multimeter. Connect the probes to the two outer pins to measure the total resistance. Use one outer pin and the wiper (middle pin) to read the current variable resistance setting.

3. Can I replace a rotary potentiometer with a digital one?

Yes, in most cases — if your system has a microcontroller (like Arduino or ESP32), you can use an I2C or SPI-controlled digipot. However, analog compatibility and resolution limitations should be considered.

4. What is the lifespan of a potentiometer?

Standard potentiometers have a mechanical life of 10,000 to 1,000,000 operations depending on build quality and type. Multi-turn and industrial potentiometers typically last longer.

5. Is a potentiometer a variable resistor?

Not exactly. A potentiometer can be used as a variable resistor (rheostat) by connecting only two terminals, but it's typically used as a voltage divider with all three terminals.

Still have questions? Reach out to Onzuu — your trusted global potentiometer distributor for brands like Bourns, Vishay, and Alpha.
